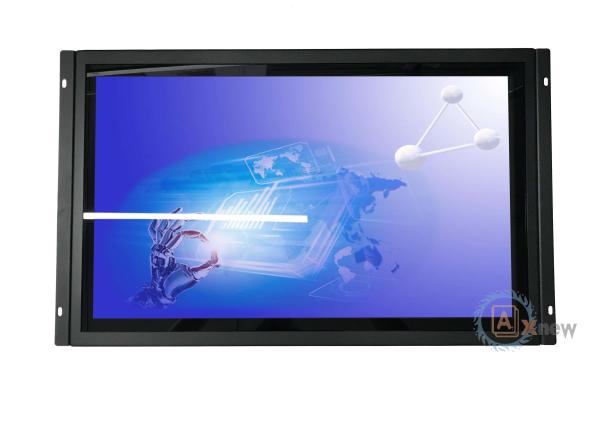

VGA HDMI 1366x768 300cd/m2 18.5'' Open Frame LCD Monitor

Product Categories
AXNEW DISPLAY TECHNOLOGY CO.,LTD
Contact Now

VGA HDMI 1366x768 300cd/m2 18.5'' Open Frame LCD Monitor

  • 1
  • 2

Brand Name : AXNEW

Model Number : AXD-19OPN2P2-T2W

Certification : CE/FCC/ROHS

Place of Origin : Shenzhen China

MOQ : 5 Pieces

Price : negotiation

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 2000 pieces/month

Delivery Time : 10 working days

Packaging Details : 5 Pcs /Carton with firm foam

Size : 18.5"

Brightness : 300cd/m2

Contrast Ratio : 1000:1

Screen format : 16:10

Pixel : 1366x768

Input signal : VGA DVI-D

Signal inputs : Hdmi , VGA input, Video in

Power voltage : DC12V in/ AC-DC

Contact Now

18.5'' Economic 12V In Wide Open Frame LCD Monitor with Capacitive multi touch


Display Specifications
Display 18.5" Color TFT Open Frame Monitor
Model Name AXD-19OPN2P2-T2W
Active Display Area (mm) 413.4 (H)x 234.0(V)
Pixel Pitch (mm) 0.300(H)x0.300(V)
Resolution (Pixel) 1366x768,16.7M (6 bit + Hi-FRC)
Brightness (CD/m^2) 250cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 20.5W typical, normal operation
Touch Screen
Type Capacitive Touch USB Connection
Surface Hardness >6H
Durability 50Million Touches
Transparency 88%~92%
OSD Control On the back side
I/O Connectors 1x 12vDC JACK,1xVGA,1xDVI;1xUSB for touch use only
Power Input 48W adapter with AC 100~240V input and 12V@4A Output
Mechanical Specifications
Construction Steel metal slim frame
Dimensions Subject to the drawings
Mounting fixing braket ;Embedded optional
Environment Specifications
Operating Temperature 0~50℃
Storage Temperature -20~60℃
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 18.5 inch economic open frame lcd and power adapter



Features and Advantages

1. 18.5'' New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. HDMI control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA HDMI Signal inputs; capacitive touch with cover protective glass
6. 18.5 inch wide screen open frame monitor for application control , advertising player ,campus and industrial terminal, etc

18.5 inch industrial LCD open frame monitor with VGA HDMI input slim; which is widely used for Medical industry , Automatic equipments, Advertising , vending embedded system, Kiosks etc. You can install the touch screen by your side easily.
